9208 - 9660STS and 9760STS Self-Propelled Combines (North American Edition) - 30Aug18

???µN???N?N?N?N?N? ???° ???»?°????N?N? N?N?N??°????N?N?

9208 - 9660STS and 9760STS Self-Propelled Combines (North American Edition) - 30Aug18

140 - DRIVES

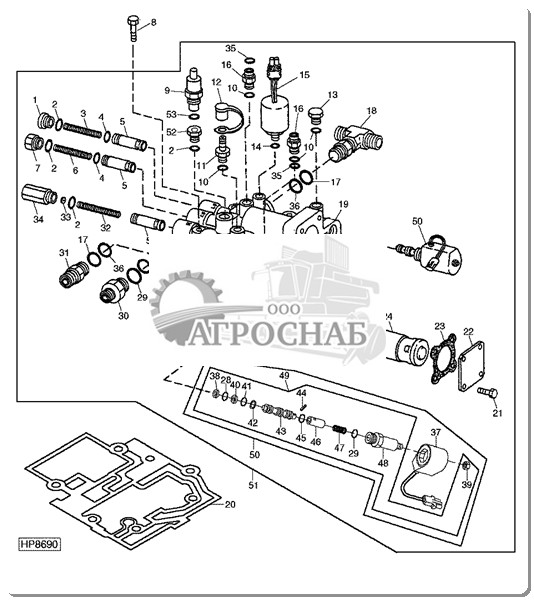

Engine Gearcase Pressure Regulator

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 H204328 Fitting Plug 1 X X
2 R26375 O-Ring 4 X X
3 H89241 Spring 1 X X
4 R28776 O-Ring 2 X X
5 R63980 Valve 3 X X
6 R56782 Compression Spring 1 X X
7 H126026 Fitting Plug 1 X X
8 19M7979 Screw 7 X X M8 X 55
9 AH156144 Hydr.Oil Temperature Sensor 1 X X
10 R26448 O-Ring 4 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 AH125760 Hyd. Quick-Connect Coupler 1 X X
12 R77175 Cover 1 X X
13 R27218 Fitting Plug 1 X X
14 R28782 O-Ring 1 X X
15 AH135744 Switch 1 X X (A)
16 38H1160 Adapter Fitting 2 X X
17 R26906 O-Ring 2 X X
18 38H1018 Tee Fitting 1 X X
19 H132970 Housing 1 X X
20 H129328 Gasket 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
21 19M7867 Screw 4 X X M8 X 25
22 H118906 Cover 1 X X
23 H129765 Gasket 1 X X
24 T77514 Piston 1 X X
25 24M7101 Washer 1 X X 11 X 34 X 3 mm
26 R47449 Compression Spring 1 X X
27 T45132 Spring 1 X X
28 T77857 O-Ring 3 X X
29 U12547 O-Ring 3 X X
30 38H1175 Adapter Fitting 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
31 38H1162 Adapter Fitting 1 X X
32 T60314 Compression Spring 1 X X
33 R33521 Shim AR X X
34 H126028 Fitting Plug 1 X X
35 T77613 O-Ring 2 X X
36 T77932 O-Ring 2 X X
37 AH128654 Electrical Coil 1 X X
38 R42926 Back-Up Ring 1 X X
39 M63707 Lock Nut 1 X X
40 R45187 Back-Up Ring 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
41 R45638 O-Ring 1 X X
42 R46701 Snap Ring 1 X X
43 ...... Spool 1 X X
44 34H227 Spring Pin 1 X X 3/32" X 1/2"
45 N31772 O-Ring 1 X X
46 ...... Plunger 1 X X
47 R64698 Compression Spring 1 X X
48 ...... Guide 1 X X
49 AH130949 Solenoid Valve 1 X X
50 AH128655 Solenoid Valve 2 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
51 AH165248 Hand Operated Valve 1 X X
52 T28256 Coupling 1 X X
53 51M7040 O-Ring 1 X X 9.300 X 2.200 mm

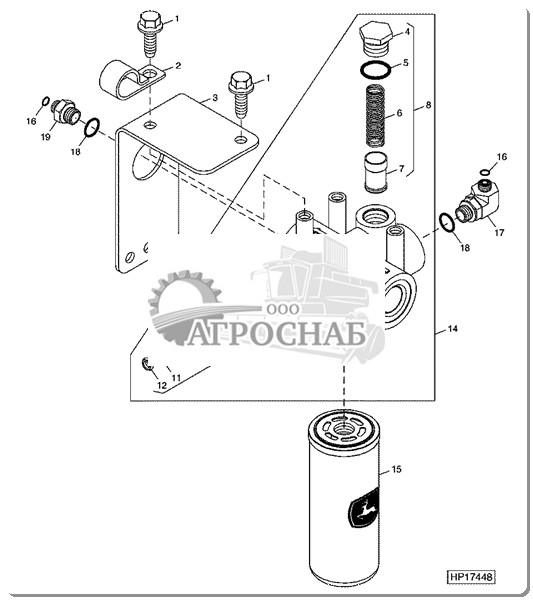

Engine Gearcase Oil Filter Assembly

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 19M7784 Screw AR X X M10 X 20
2 AH90990 Clip 1 X X
3 CE18931 Bracket 1 X X
4 ...... Plug 1 X X
5 R26906 O-Ring 1 X X
6 ...... Spring 1 X X
7 ...... Piston 1 X X
8 AH128451 Hydraulic Pressure Valve 1 X X
9 R26448 O-Ring 1 X X
10 ...... Switch 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 12H295 Lock Washer 1 X X 0.190"
12 14H631 Nut 1 X X 0.190"
13 AH128450 Push Switch 1 X X
14 AH139434 Filter Head 1 X X
15 AH128449 Hydraulic Filter 1 X X
16 T77857 O-Ring 2 X X
17 38H1013 Elbow Fitting 1 X X
18 U12547 O-Ring 2 X X
19 38H1175 Adapter Fitting 1 X X

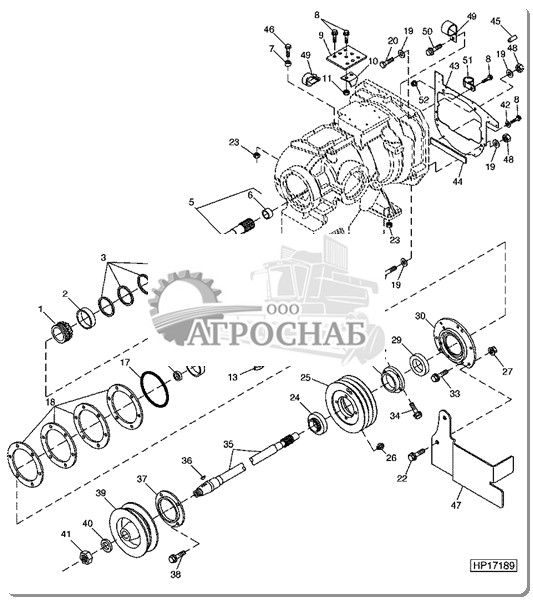

Main Gearcase

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 DE18609 Tapered Roller Bearing 1 X X
2 CE18403 Bearing Cup 1 X X
3 L29041 Shim 1 X X 0.08(MM)
L29042 Shim AR X X 0.13(MM)
L29043 Shim AR X X 0.25(MM)
L29044 Shim AR X X 0.50(MM)
4 P46770 Snap Ring 1 X X
5 AH139118 Shaft 1 X X
6 R43305 Bushing 1 X X
7 N61709 Bushing 4 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
8 19M7866 Screw AR X X M8 X 20
9 H127159 Cover 1 X X
10 H130140 Trough 1 X X
11 14M7396 Lock Nut 2 X X M8
12 DE18569 Bevel Gear 1 X X Z=37/56
13 26H105 Shaft Key 1 X X 3/8" X 2-1/8"
14 JD8162 Bearing Cone 1 X X
15 JD8206 Bearing Cup 1 X X
16 AT28975 Seal 1 X X
17 H125838 O-Ring 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
18 H125740 Shim 1 X X 0.08(MM)
H125741 Shim AR X X 0.13(MM)
H125742 Shim AR X X 0.25(MM)
H125743 Shim AR X X 0.50(MM)
19 N231749 Washer 8 X X
20 19H3196 Cap Screw 2 X X 3/4" X 4"
21 08H4681 Cap Screw 2 X X 3/4" X 6-3/4"
22 19M7786 Screw 2 X X M10 X 30
23 14M7299 Flange Nut 4 X X M12
24 AH151653 Ball Bearing 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
25 H152924 Pulley 1 X X
26 JD7797 Lubrication Fitting 1 X X
27 14M7296 Flange Nut 4 X X M10
28 H101878 Hub 1 X X
29 AH117643 Seal 1 X X
30 H144834 Housing 1 X X
31 R26906 O-Ring 1 X X
32 R27474 Drain Plug 1 X X
33 19M7835 Screw 6 X X M10 X 35
34 19M7812 Screw 2 X X M10 X 100
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
35 H129934 Shaft 1 X X
36 26M6787 Shaft Key 1 X X 10 X 32 mm
37 H174410 Pressed Flanged Housing 1 X X
38 19M8306 Screw 4 X X M12 X 50
39 H129935 Pulley 1 X X
40 24H1481 Washer 1 X X 1-5/32" X 2" X 0.134"
41 H82619 Lock Nut 1 X X
42 24M7055 Washer 4 X X 8.400 X 16 X 1.600 mm
43 H170303 Cover 1 X X (A)
H213772 Cover 1 X X (B)
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
H220613 Cover 1 X X (B) (C)
44 H88771 Isolator 1 X X
45 H79910 Dowel Pin 2 X X
46 19M8306 Screw 4 X X M12 X 50 (SUB FOR (4) 19M7815)
47 H167792 Guard 1 X X
48 T25879 Nut 4 X X
49 AH117301 Clamp 2 X X
50 19M7774 Screw 2 X X M6 X 12
51 AH117301 Clamp 3 X X
52 14M7298 Flange Nut 3 X X M8
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
.. DE19258 Gear Case 1 X (D)
.. DE19261 Gear Case 1 X (E)

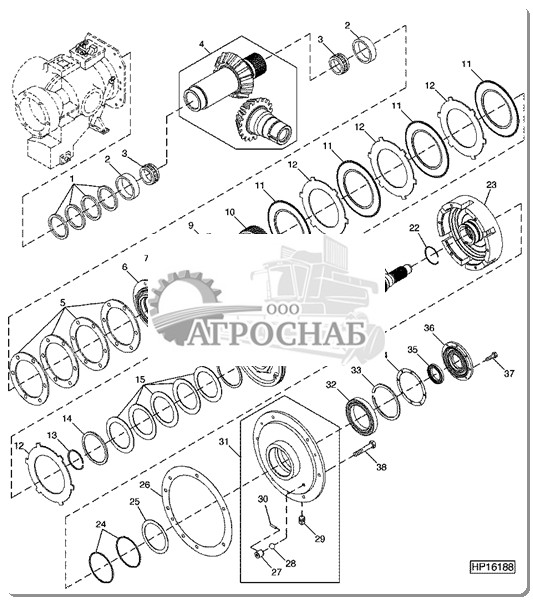

Main Gearcase

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 H119028 Shim 1 X X 0.08 mm
H119029 Shim AR X X 0.13 mm
H119030 Shim AR X X 0.25 mm
H119031 Shim AR X X 0.50 mm
2 JD8206 Bearing Cup 2 X X
3 JD8162 Bearing Cone 2 X X
4 DE19182 Gear 1 X X Z = 34 / 23
5 H125740 Shim AR X X 0.08 mm
H125741 Shim AR X X 0.13 mm
H125742 Shim 1 X X 0.25 mm
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
H125743 Shim 4 X X 0.50 mm
6 H125733 Housing 1 X X
7 19M7835 Screw 6 X X M10 X 35
8 19M7786 Screw 6 X X M10 X 30
9 H144762 Hub 1 X
CE17885 Hub 1 X
10 DE19018 Hub 1 X
DE18734 Hub 1 X
11 AH125490 Clutch Disk 3 X
AH125490 Clutch Disk 4 X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
12 T70309 Plate 3 X
T70309 Plate 4 X
13 T50409 Snap Ring 1 X X
14 T49676 Round Retainer 1 X X
15 T50415 Disk Spring 4 X
T50415 Disk Spring 5 X
16 T62508 Washer 1 X X
17 H128937 Piston 1 X
CE17887 Piston 1 X
18 T62509 Washer 1 X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
CE17900 Washer 1 X
19 40M7090 Snap Ring 1 X X
20 CE18399 Washer 1 X X
21 CE17888 Drive Shaft 1 X X
22 CE17940 Snap Ring 1 X X
23 CE18181 Drum 1 X
CE17886 Drum 1 X
24 R77764 Sealing Ring 2 X X
25 R76937 Washer 1 X X
26 H125354 Gasket 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
27 R68824 Seat 1 X X
28 400R Ball 1 X X
29 15H559 Pipe Plug 1 X X 1/4"
30 H111474 Pin 1 X X
31 AH120737 Housing 1 X X
32 JD8676 Ball Bearing 1 X X
33 T14323 Snap Ring 1 X X
34 H125356 Gasket 1 X X
35 AH209644 Seal 1 X X (SUB FOR AH158595)
36 H148769 Housing 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
37 19M7863 Screw 8 X X M6 X 25
38 19M7835 Screw 6 X X M10 X 35
.. DE19258 Gear Case 1 X (A)
.. DE19261 Gear Case 1 X (B)

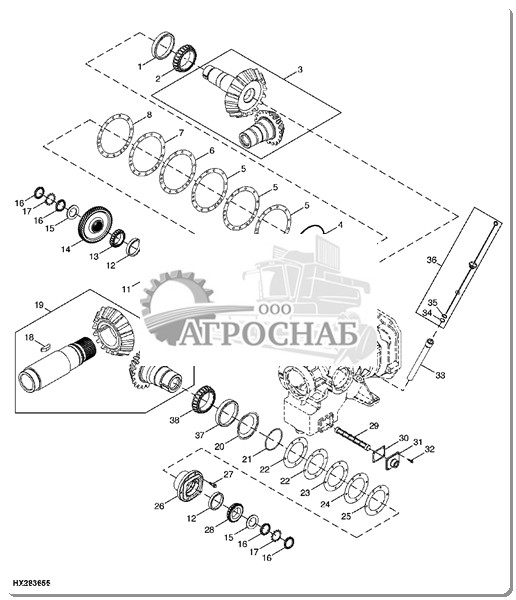

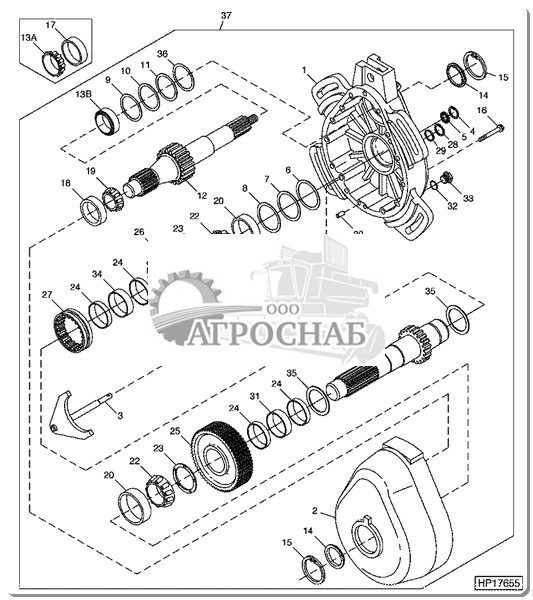

MAIN GEARCASE

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 JD9132 Bearing Cup 1 X X
2 JD9075 Bearing Cone 1 X X
3 DE18569 Bevel Gear 1 X X Z=37/56
4 H125839 O-Ring 1 X X
5 CE17453 Shim AR X X 0.50 MM
6 CE17452 Shim AR X X 0.25 MM
7 CE17451 Shim AR X X 0.13 MM
8 CE17450 Shim AR X X 0.08 MM
9 CE17425 Housing 1 X X
10 19M7835 Screw 3 X X M10 X 35
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 CE18446 O-Ring 2 X X
12 JD8206 Bearing Cup 2 X X
13 JD8162 Bearing Cone 1 X X
14 CE17434 Gear 1 X X Z = 49
15 H110800 Lock Washer 2 X X
16 H122650 Lock Nut 4 X X
17 H110801 Lock Washer 2 X X
18 26H105 Shaft Key 1 X X 3/8" X 2-1/8"
19 DE19182 Gear 1 X X
20 H125837 Oil Cup 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
21 R72032 O-Ring 1 X X
22 H125737 Shim AR X X 0.50 MM
23 H125736 Shim AR X X 0.25 MM
24 H125735 Shim AR X X 0.13 MM
25 H125734 Shim AR X X 0.08 MM
26 H125738 Housing 1 X X
27 19M7805 Screw 5 X X M10 X 45
28 JD9007 Bearing Cone 1 X X
29 CE19990 Filter 1 X X (SUB FOR CE18104)
30 H126792 Gasket 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
31 H126793 Cover 1 X X
32 19M7868 Screw 4 X X M8 X 30
33 H132995 Tube 1 X X
34 A4730R O-Ring 1 X X
35 T28004 O-Ring 1 X X
36 AH214957 Dipstick 1 - 721603
AH214957 Dipstick 1 - 721659
AH228260 Dipstick 1 721604 -
AH228260 Dipstick 1 721660 -
37 JD9132 Bearing Cup 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
38 JD9075 Bearing Cone 1 X X
.. DE19258 Gear Case 1 X (A)
.. DE19261 Gear Case 1 X (B)

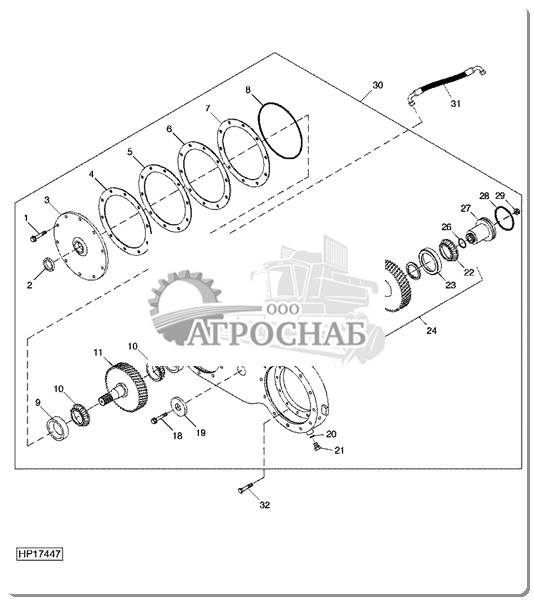

Transfer Gearbox

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 19M7835 Screw 10 X X M10 X 35
2 AZ33988 Seal 1 X X
3 CE17427 Sleeve 1 X X
4 CE17525 Shim 2 X X TK = 0.50 mm
5 CE17526 Shim 1 X X TK = 0.08 mm
6 CE17527 Shim 1 X X TK = 0.13 mm
7 CE17528 Shim 1 X X TK = 0.25 mm
8 CE17454 O-Ring 1 X X
9 JD9144 Bearing Cup 2 X X
10 JD9088 Bearing Cone 2 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 CE17439 Gear 1 X X Z = 49
12 E62917 Orifice 1 X X
13 DE19476 Housing 1 X X
14 R26448 O-Ring 1 X X
15 38H1160 Adapter Fitting 1 X X
16 T177613 Gasket 1 X X
17 R27218 Fitting Plug 1 X X
18 19M7829 Screw 1 X X M16 X 130
19 CE18486 Spacer 1 X X
20 R26906 O-Ring 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
21 R27474 Barrel 1 X X
22 JD8130 Bearing Cone 1 X X
23 JD8231 Bearing Cup 1 X X
24 DE18556 Thrust Bearing 1 X X
25 CE17440 Gear 1 X X Z = 58
26 U15973 O-Ring 1 X X
27 CE17441 Axle 1 X X
28 T42302 O-Ring 1 X X
29 14M7291 Flange Nut 1 X X M16
30 DE19477 Gear Case 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
31 DE19412 Hydraulic Hose 1 X X
32 19M7819 Screw 13 X X M12 X 90

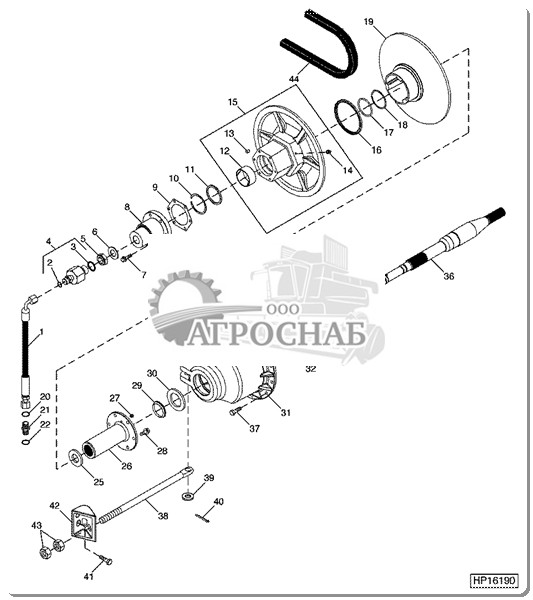

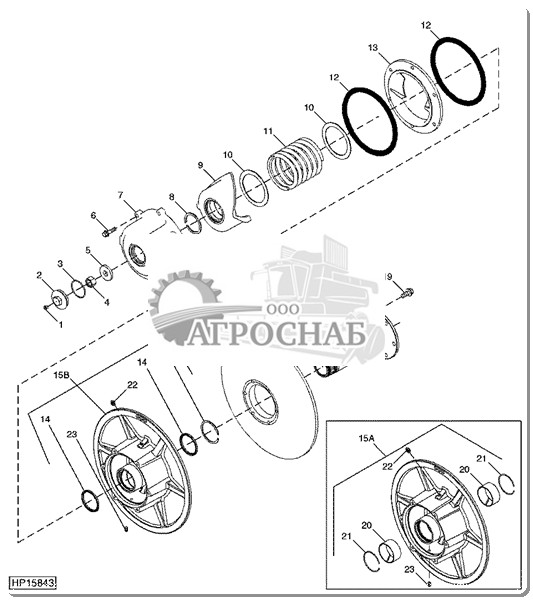

Separator Drive Variable Speed

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 AH230753 Hydraulic Hose 1 X X SUB FOR AH153816
2 T77814 O-Ring 2 X X
3 R26375 O-Ring 1 X X
4 AH218190 Union Fitting 1 X X SUB FOR AH144144
5 H165447 Lock Nut 1 X X
6 24H1668 Washer 1 X X
7 19M8162 Screw 6 X X
8 AH172515 Hydraulic Cylinder 1 X X
9 H150368 Shim 1 X X TK = 0.76 mm
10 T48776 Snap Ring 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 AH144147 Seal 1 X X
12 H150201 Bushing 1 X X
13 15H638 Pipe Plug 1 X X
14 JD7759 Lubrication Fitting 1 X X
15 AH168572 Pulley 1 X X
16 AH136497 Seal 1 X X
17 R26543 O-Ring 1 X X
18 P48703 Snap Ring 1 X X
19 H156321 Pulley 1 X X
20 T77613 O-Ring 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
21 38H1171 Adapter Fitting 1 X X
22 R26375 O-Ring 2 X X
23 38H1168 Adapter Fitting 1 X X
24 R53296 Pin Fastener 1 X X
25 24H1542 Washer 1 X X
26 H173373 Hub 1 X X
27 AE38448 Pressure Relief Valve 1 X X
28 19M7789 Screw 6 X X
29 R89326 Seal 1 X X
30 AH144149 Seal 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
31 H151592 Bearing Housing W/O Bearing 1 X X
32 H150693 O-Ring 1 X X
33 AH144150 Ball Bearing 1 X X
34 40M7232 Snap Ring 1 X X
35 R1225R O-Ring 2 X X
36 H173375 Shaft 1 X X
37 19M7790 Screw 2 X X
19M7818 Screw 10 X X
38 H218588 Eyebolt 1 X X SUB FOR H202244
39 24H1448 Washer 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
40 11M7038 Cotter Pin 1 X X
41 19M7793 Screw 2 X X
42 H201568 Bracket 1 X X
43 14M7533 Nut 2 X X
44 HXE46027 V-Belt 1 X X LGTH = 3060 mm, WIDTH = 7 6.7 mm, SUB FOR H221498

Separator Drive Torque Sensing - Driven

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 AE38448 Pressure Relief Valve 1 X X
2 H150503 Fitting Plug 1 X X
3 R43750 O-Ring 1 X X
4 A31870 Lock Nut 1 X X
5 H169149 Washer 1 X X
6 19M8162 Screw 6 X X M10 X 40
7 H150080 Cover 1 X X
8 H168131 Snap Ring 1 X X
9 H173606 Cam 1 X X
10 H150609 Washer 2 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 H218685 Compression Spring 1 X X (SUB FOR H164259)
12 H150502 O-Ring 2 X X
13 H164061 Cam 1 X X
14 AH144147 Seal 2 X X
15A AH212177 Half Sheave 1 X X (SUB FOR AH154007) (SUB AH219709)
15B AH219709 Half Sheave 1 X X
16 T48776 Snap Ring 1 X X
17 H173124 Pulley 1 X X
18 H173374 Hub 1 X X
19 19M7789 Screw 6 X X M12 X 30
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
20 H150201 Bushing 2 X X (USE WITH AH154007)
H208620 Bushing 2 X X (USE WITH AH212177)
21 T12486 Snap Ring 2 X X
22 JD7759 Lubrication Fitting 1 X X
23 15H638 Pipe Plug 1 X X 1/8"

Two Speed Gearbox

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 CE17429 Cover 1 X X (A)
CE19188 Cap 1 X X (B)
2 DE18617 Housing 1 X X
3 DE18610 Yoke With Shaft 1 X X
4 40M1856 Snap Ring 1 X X
5 AT12820 Seal 1 X X
6 E55036 Shim 1 X X 0.127MM
7 E55037 Shim AR X X 0.178MM
8 E55038 Shim AR X X 0.508MM
9 L31858 Shim 1 X X 0.100MM
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
10 L31859 Shim AR X X 0.200MM
11 L31860 Shim AR X X 0.500MM
12 CE18504 Drive Shaft 1 X X (A)
CE19189 Drive Shaft 1 X X (B)
13A JD9086 Bearing Cone 1 X X (A)
13B AT124519 Tapered Roller Bearing 1 X X (B)
14 DE18618 Seal 2 X X
15 40M1873 Snap Ring 2 X X
16 19M7944 Screw 14 X X M10 X 120
17 JD9119 Bearing Cup 1 X X (A)
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
18 JD8223 Bearing Cup 1 X X
19 JD8182 Bearing Cone 1 X X
20 JD7292 Bearing Cup 2 X X
21 CE18212 Drive Shaft 1 X X
22 JD7378 Bearing Cone 2 X X
23 CE17533 Thrust Washer 2 X X
24 DE18934 Needle Bearing 4 X X
25 CE18213 Gear 1 X X Z = 53
26 CE18214 Gear 1 X X Z = 46
27 CE18218 Locking Collar 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
28 40M1851 Snap Ring 1 X X
29 CE18347 Plug 1 X X
30 44M7036 Dowel Pin 2 X X
31 CE18217 Spacer 1 X X
32 R26375 O-Ring 2 X X
33 R39112 Fitting 2 X X
34 CE18216 Spacer 1 X X
35 CE18215 Thrust Washer 2 X X
36 CE18488 Shim 1 X X TK = 0.15 mm
37 DE19162 Gear Case 1 X X (A)
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
DE19678 Gear Case 1 X X (B)

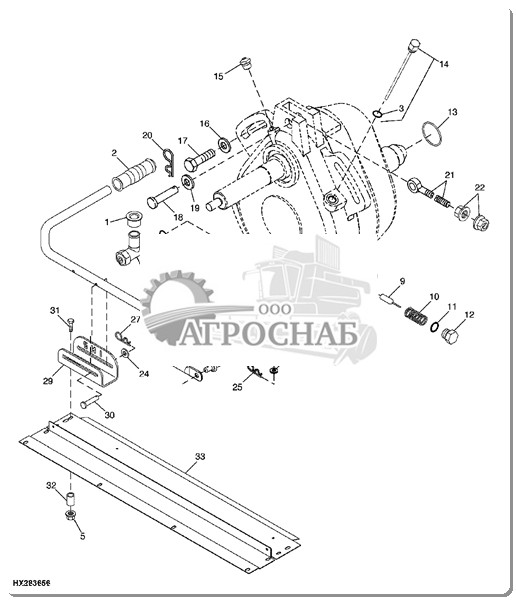

TWO SPEED GEARBOX HOSES AND FITTINGS

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 H176573 Cap 1 X X
2 B15494 Grip 1 X X
3 R26375 O-Ring 2 X X
4 DE19125 Drain Valve 1 X X
5 14M7296 Flange Nut 1 X X M10
6 19M7815 Screw 1 X X M12 X 60
7 24M7180 Washer 2 X X 13 X 37 X 3 mm
8 28H950 Bushing 1 X X 0.546" X 0.840" X 1-1/2"
9 CE17532 Pin Fastener 1 X X
10 T27716 Compression Spring 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 R26448 O-Ring 1 X X
12 R27218 Fitting Plug 1 X X
13 H169954 Snap Ring 1 X X
14 AH168365 Dipstick 1 X X
15 AE38448 Pressure Relief Valve 1 X X
16 24H1106 Washer 4 X X 11/16" X 1-3/4" X 0.134"
17 19M7794 Screw 4 X X M16 X 50
18 T128536 Pin Fastener 1 X X
19 24M7091 Washer 1 X X 26 X 44 X 4 mm
20 A15146 Pin 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
21 H150158 Eyebolt 1 X X
22 14M7300 Flange Nut 2 X X M20
23 A52086 Pin Fastener 1 X X
24 24M7207 Washer 2 X X 8.400 X 24 X 2 mm
25 11H236 Cotter Pin 1 X X 1/8" X 1"
26 H207095 Lever 1 X X (SUB FOR H166413)
27 J16931 Pin 2 X X
28 H203295 Rod 1 X X
29 H159511 Support 1 X X
30 R68672 Pin 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
31 19M7806 Screw 1 X X M10 X 50
32 H123918 Spacer 1 X X
33 AH222021 Cover 1 X X (SUB FOR AH203810)

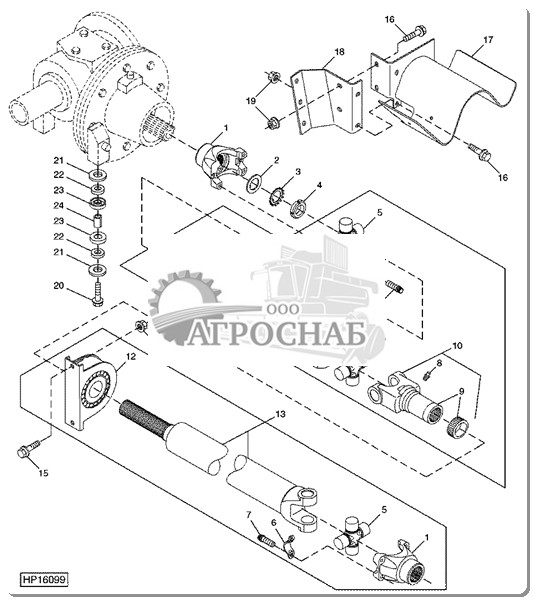

Primary Countershaft Universal Driveshafts

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 H121681 Universal Joint Yoke 1 X
H130409 Universal Joint Yoke 1 X
2 H118919 Lock Washer 1 X X
3 H118920 Lock Washer 1 X X
4 N139123 Nut 1 X X
5 AH207921 Universal Joint Cross 3 X
AH207922 Universal Joint Cross 3 X
6 R85168 Clamp 4 X X
7 R85169 Screw 8 X X
8 JD7797 Lubrication Fitting 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
9 AH163005 Universal Joint Yoke 1 X X (SUB FOR AH163006)
10 AH163003 Universal Joint Yoke 1 X
AH163005 Universal Joint Yoke 1 X
11 AH160390 Universal Driveshaft 1 - 710500
AH212606 Universal Driveshaft 1 710501 -
AH145493 Universal Driveshaft 1 - 710600
AH208848 Universal Driveshaft 1 710601 -
12 AH229100 Bearing Kit 1 X X (SUB FOR AH163002)
13 AH229116 Universal Driveshaft 1 - 710500
AH229117 Universal Driveshaft 1 710501 -
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
AH232082 Universal Driveshaft 1 - 710600
AH208850 Universal Driveshaft 1 710601 -
14 14M7401 Lock Nut 2 X X M12
15 19M7789 Screw 2 X X M12 X 30
16 19M7784 Screw 7 X X M10 X 20
17 AH207518 Shield 1 X X
18 H209968 Support 1 X X
19 14M7296 Flange Nut 7 X X M10
20 19M7826 Screw 2 X X M16 X 70
21 H163726 Washer 4 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
22 H148132 Bushing 4 X X
23 H148133 Retainer 4 X X
24 Z64078 Spacer 2 X X

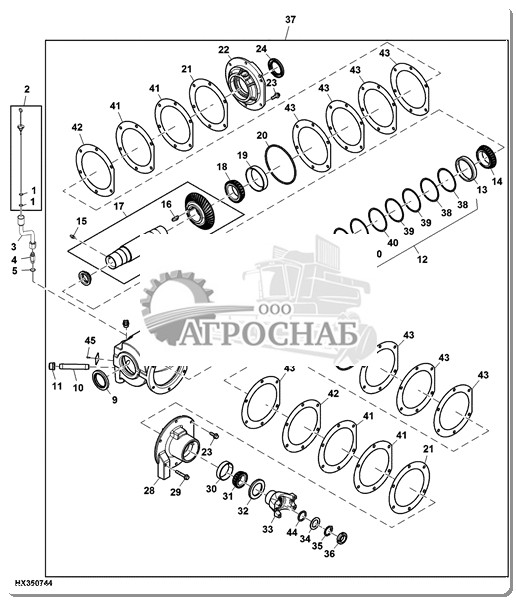

Primary Countershaft Gearcase

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 B2762R O-Ring 2 X X
2 AH206843 Dipstick 1 X X (C)
AH173466 Dipstick 1 X X (B)
3 AH214987 Dipstick Tube 1 X X (C)
AH214986 Dipstick Tube 1 X X (B)
4 H164518 Adapter Fitting 1 X X
5 R26375 O-Ring 1 X X
6 19M7866 Screw 4 X X M8 X 20
7 H75267 Cover 1 X X
8 H145001 Gear Case 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
9 AH137772 Seal 1 X X
10 29H217 Threaded Nipple 1 X X 1/2"
11 15H3 Cap 1 X X
12 AT146272 Shim 1 X X INCLUDES (12) T34354, (1 2) T34355 AND (12) T34356
13 JD8210 Bearing Cup 1 X X
14 R120461 Bearing Cone 1 X X
15 JD7797 Lubrication Fitting 1 X X
16 26H105 Shaft Key 1 X X 3/8" X 2-1/8"
17 DE30138 Gear 1 X X Z = 41 / 41, SUB FOR AH154701
18 JD7378 Bearing Cone 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
19 JD7292 Bearing Cup 1 X X
20 H125838 O-Ring 2 X X
21 H114226 Shim 2 X X TK = 0.08 mm
22 H126564 Housing 1 X X
23 19M7786 Screw 11 X X M10 X 30
24 E56866 Seal 1 X X
25 JD9078 Bearing Cone 1 X X
26 JD8255 Bearing Cup 1 X X
27 H129844 Retainer 1 X X
28 CE18400 Housing 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
29 19M7807 Screw 1 X X M10 X 60
30 JD7418 Bearing Cup 1 X X
31 JD7395 Bearing Cone 1 X X
32 AH137771 Seal 1 X X
33 H121681 Universal Joint Yoke 1 X
H130409 Universal Joint Yoke 1 X
34 H118919 Lock Washer 1 X X
35 H118920 Lock Washer 1 X X
36 N139123 Nut 1 X X
37 AH154768 Gear Case 1 X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
AH154770 Gear Case 1 X
38 T34354 Shim 2 X X TK = 0.05 mm
39 T34355 Shim 1 X X TK = 0.13 mm
40 T34356 Shim 5 X X TK = 0.25 mm
41 H114227 Shim 1 X X TK = 0.13 mm
42 H114228 Shim 1 X X TK = 0.25 mm
43 H118927 Shim 1 X X TK = 0.5 mm
44 A4540R O-Ring 1 X X 37.465 X 5.334 mm
45 25M3827 Groove Pin 2 X X (A) 3 X 8 mm

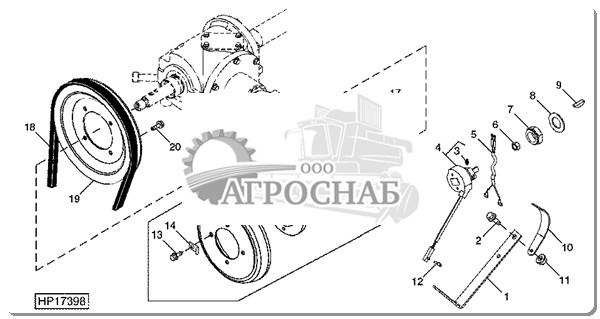

Header Electromagnetic Clutch

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 H201473 Bracket 1 X X
2 19M7862 Screw 1 X X M6 X 20
3 JD7797 Lubrication Fitting 1 X X
4 AH162068 Carbon Brush Holder 1 X X
5 AH134207 Wiring Harness 1 X X
6 14H809 Nut 1 X X 1/2"
7 H165447 Lock Nut 1 X X M30
8 24H1668 Washer 1 X X 1-17/64" X 2-1/4" X 0.134"
9 26H105 Shaft Key 1 X X 3/8" X 2-1/8"
10 H134773 Strap 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 14M7303 Flange Nut 1 X X M6
12 A78364 Tie Band 1 X X
13 19M7788 Screw 1 X X M12 X 25
14 AH77279 Clip 1 X X
15 H236500 Hub 1 X X (SUB FOR H168499)
16 T44824 Snap Ring 2 X X
17 AH234499 Clutch 1 X X (SUB FOR AH205972)
18 H156796 V-Belt 1 X X (A)
HXE95935 V-Belt 1 X X (B) LGTH = 4780 mm, WIDTH = 50 mm, SUB FOR H156541
19 H161270 Pulley 1 X X (A)
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
H161293 Pulley 1 X X (B)
20 19M7789 Screw 4 X X M12 X 30

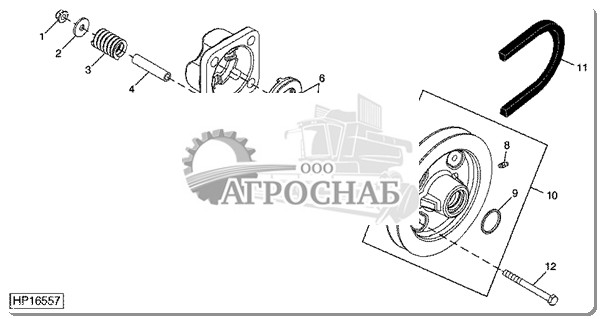

SLIP CLUTCH - TAILINGS ELEVATOR

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 H135891 Lock Nut 4 X X
2 24M7101 Washer 4 X X 11 X 34 X 3 mm
3 H174289 Compression Spring 4 X X
4 H87206 Spacer 4 X X
5 H89525 Retainer 1 X X
6 H128265 Slip Clutch 2 X X
7 H174509 Hub 1 X X
8 JD7797 Lubrication Fitting 1 X X
9 AM2553T Seal 1 X X
10 AH173040 Pulley 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 H154731 V-Belt 1 X X LGTH = 2100 mm, WIDTH = 22.352 mm
A-C72 V-Belt 1 X X (A) LGTH = 1930.4 mm, WIDTH = 22.225 mm, SUB FOR CP72
12 19M8166 Cap Screw 4 X X M10 X 110

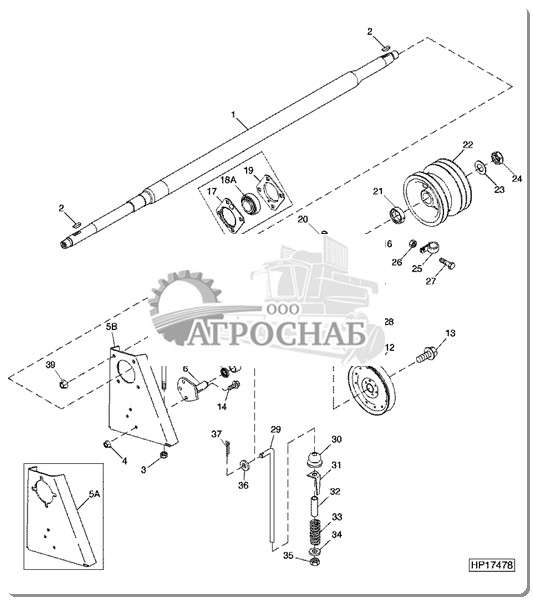

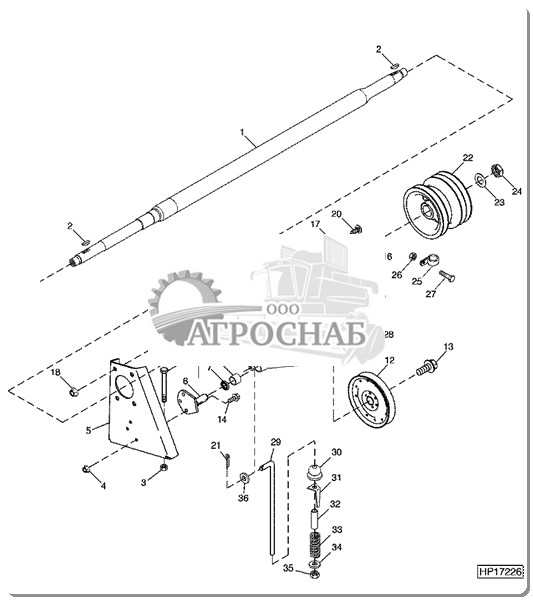

Primary Countershaft And Sheave ( - 710500)

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 H161599 Shaft 1 X X (SUB H214618, H214619, AH21390 2, (4) 19M7793 AND (4) 14M7291)
H214618 Shaft 1 X X
2 26H105 Shaft Key 2 X X 3/8" X 2-1/8"
3 14M7299 Flange Nut AR X X M12
4 14M7296 Flange Nut 3 X X M10
5A H201607 Bracket 1 X X (USE WITH H161599)
5B H214619 Bracket 1 X X (USE WITH H214618)
6 AH212002 Pin 1 X X (SUB FOR AH156051)
7 AA5607R Seal 2 X X
8 H171061 Bushing 2 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
9 AH202631 Arm 1 X X (SUB FOR AH148072
10 24M7091 Washer 1 X X 26 X 44 X 4 mm
11 P46402 Snap Ring 1 X X
12 AH97031 Idler 1 X X
13 19M7794 Screw 1 X X M16 X 50
14 19M7785 Screw 3 X X M10 X 25
15 AH121005 Hose 1 X X
16 H171472 Adapter Fitting 1 X X
17 H160465 Pressed Flanged Housing 1 X X
18A JD9339 Ball Bearing 1 X X (USE WITH H161599)
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
18B AH213902 Bearing With Housing 1 X X (USE WITH H214618)
19 H160466 Pressed Flanged Housing 1 X X
20 03M7198 Bolt 4 X X M12 X 30 (USE WITH H161599)
19M7793 Screw 4 X X M16 X 40 (USE WITH H214618)
21 JD8579 Eccentric Locking Collar 1 X X
22 H158333 Pulley 1 X X
H178006 Pulley 1 X X (A)
23 24H1668 Washer 1 X X 1-17/64" X 2-1/4" X 0.134"
24 H165447 Lock Nut 1 X X
25 AH80916 Clip 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
26 14M7298 Flange Nut 1 X X M8
27 19M7866 Screw 1 X X M8 X 20
28 E12379 Nut 1 X X
29 H118948 Hook Bolt 1 X X
30 H129207 Pivot 1 X X
31 H127872 Gauge 1 X X
32 ...... Hose 1 X X CTL 70 mm, MF TY22326
33 H26552 Compression Spring 1 X X
34 24M7180 Washer 1 X X 13 X 37 X 3 mm
35 14M7275 Nut 1 X X M12
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
36 24M7047 Washer 1 X X 13 X 24 X 2.500 mm
37 11M7021 Cotter Pin 1 X X 4 X 25 mm
38 19M7837 Screw 2 X X M12 X 110
39 14M7299 Flange Nut 4 X X M12 (USE WITH H161599)
14M7291 Flange Nut 4 X X M16 (USE WITH H214618)

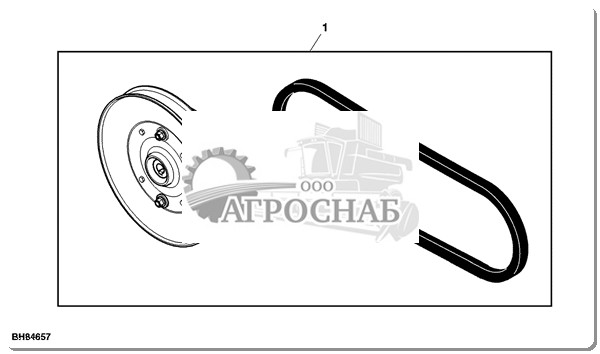

.. BH84034 Complete Goods/Ship. Bundle 1 X X (B)

Primary Countershaft And Sheave (710501 - )

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 H214618 Shaft 1 X X
2 26H105 Shaft Key 2 X X 3/8" X 2-1/8"
3 14M7299 Flange Nut AR X X M12
4 14M7296 Flange Nut 3 X X M10
5 H214619 Bracket 1 X X
6 AH212002 Pin 1 X X SUB FOR AH156051
7 AA5607R Seal 2 X X
8 H171061 Bushing 2 X X
9 AH202631 Arm 1 X X SUB FOR AH148072
10 24M7091 Washer 1 X X 26 X 44 X 4 mm
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 P46402 Snap Ring 1 X X
12 AH97031 Idler 1 X X
13 19M7794 Screw 1 X X M16 X 50
14 19M7785 Screw 3 X X M10 X 25
15 AH121005 Hose 1 X X
16 H171472 Adapter Fitting 1 X X
17 AH213902 Bearing With Housing 1 X X
18 14M7291 Flange Nut 4 X X M16
19 19M7837 Screw 2 X X M12 X 110
20 19M7793 Screw 4 X X M16 X 40
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
21 11M7021 Cotter Pin 1 X X 4 X 25 mm
22 H158333 Pulley 1 X X
H178006 Pulley 1 X X (A)
23 24H1668 Washer 1 X X 1-17/64" X 2-1/4" X 0.134"
24 H165447 Lock Nut 1 X X
25 AH80916 Clip 1 X X
26 14M7298 Flange Nut 1 X X M8
27 19M7866 Screw 1 X X M8 X 20
28 E12379 Nut 1 X X
29 H118948 Hook Bolt 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
30 H129207 Pivot 1 X X
31 H219149 Gauge 1 X X
32 ...... Hose 1 X X CTL 70 mm, MF TY22326
33 H26552 Compression Spring 1 X X
34 24M7180 Washer 1 X X 13 X 37 X 3 mm
35 14M7275 Nut 1 X X M12
36 24M7047 Washer 1 X X 13 X 24 X 2.500 mm
.. BH84034 Complete Goods/Ship. Bundle 1 X X (B)

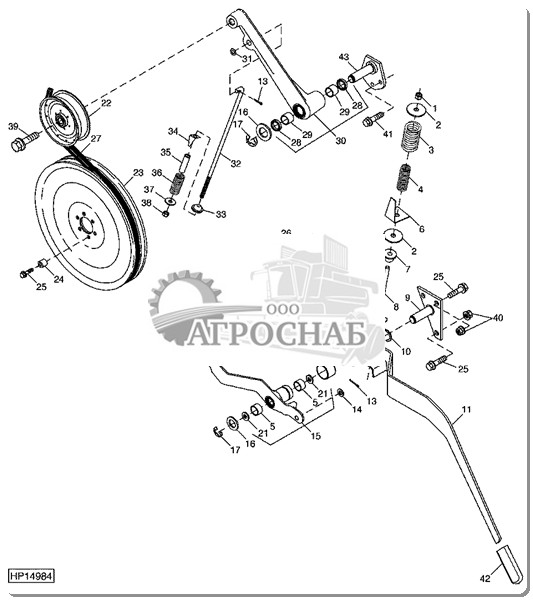

Feed Accelerator Drive and Secondary Jackshaft Idler Assemblies

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 14M7276 Nut 1 X X M16
2 24M7103 Washer 2 X X 17.500 X 56 X 5 mm
3 W25475 Compression Spring 1 X X
4 T79938 Compression Spring 1 X X
5 H171061 Bushing 2 X X
6 H171039 Gauge 1 X X
7 H129208 Pivot 1 X X
8 H171040 Bolt 1 X X
9 AH210916 Pin 1 X X SUB FOR AH201407
10 U10457 Snap Ring 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
11 AH160595 Arm 1 X X
12 H96996 Bushing 1 X X
13 11M7028 Cotter Pin 2 X X 5 X 32 mm
14 24M7053 Washer 1 X X 17 X 30 X 3 mm
15 AH164925 Arm 1 X X
16 24M7091 Washer 2 X X 26 X 44 X 4 mm
17 P46402 Snap Ring 2 X X
18 AH150900 Idler 2 X X
19 H96690 Spacer 1 X X
20 19M7846 Screw 1 X X M16 X 120
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
21 AA5607R Seal 2 X X
22 AH204389 Idler 1 X X
23 H160992 Pulley 1 X X
24 H165237 Spacer 1 X X
25 19M7786 Screw AR X X M10 X 30
26 H221731 V-Belt 1 X X (A) (C) LGTH = 2110 mm, WIDTH = 4 8.7 mm, SUB FOR H204133 OR H209606
HXE95511 V-Belt 1 X X (B) (C) LGTH = 2110 mm, WIDTH = 52 mm, SUB FOR H236472 OR H211581
H221732 V-Belt 1 X X (D) LGTH = 2060 mm, WIDTH = 48.7 mm, SUB FOR H201821 OR H216026
H221733 V-Belt 1 X X (E) LGTH = 2255 mm, WIDTH = 48.7 mm, SUB FOR H205209 OR H216027
27 AH150678 Belt Set 1 X X LGTH = 2860 mm, WIDTH = 22.4 mm
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
A-C144 V-Belt 1 X X (F) LGTH = 3759.2 mm, WIDTH = 22.225 mm, SUB FOR CP144
28 AA5607R Seal 2 X X
29 H171061 Bushing 2 X X
30 AH202772 Arm 1 X X
31 24M7047 Washer 1 X X 13 X 24 X 2.500 mm
32 H227945 Hook Bolt 1 X X
33 H170141 Pivot 1 X X
34 H219149 Gauge 1 X X
35 ...... Hose 1 X X CTL 70 mm, MF TY22326
36 H26552 Compression Spring 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
37 24M7180 Washer 1 X X 13 X 37 X 3 mm
38 14M7275 Nut 2 X X M12
39 19M7794 Screw 1 X X M16 X 50
40 14M7296 Flange Nut AR X X M10
41 19M7785 Screw 3 X X M10 X 25
42 W25634 Grip 1 X X
43 AH212002 Pin 1 X X (SUB FOR AH156051)
.. BH81691 Complete Goods/Ship. Bundle 1 X X (G)

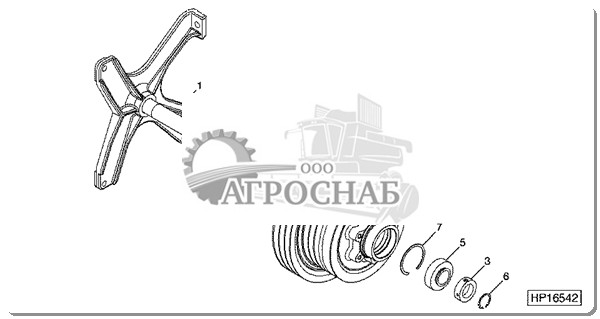

Feed Accelerator Driver Secondary Jackshaft

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 AH233090 Jackshaft 1 X X SUB FOR AH158812
2 H158358 Pulley 1 X X (A) (C)
H211582 Pulley 1 X X (B) (C)
H172339 Pulley 1 X X (D)
H204662 Pulley 1 X X (E)
3 JD8576 Eccentric Locking Collar 1 X X
4 JD9301 Ball Bearing 1 X X
5 JD9356 Ball Bearing 1 X X
6 P44478 Snap Ring 1 X X
7 P46874 Snap Ring 2 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
.. BH81691 Complete Goods/Ship. Bundle 1 X X (F)

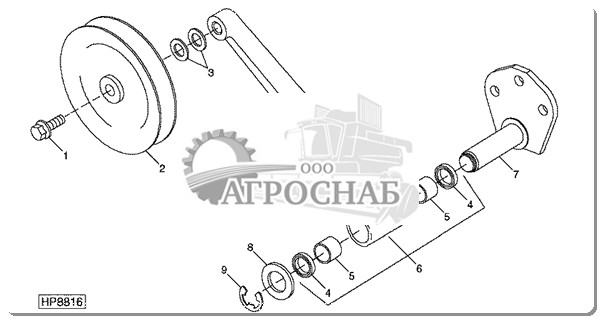

IDLER ASSEMBLY - CLEAN GRAIN ELEVATOR DRIVE

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 19M7794 Screw 1 X X M16 X 50
2 AN15237 Idler 1 X X
3 24M7053 Washer 2 X X 17 X 30 X 3 mm
4 AA5607R Seal 2 X X
5 H171061 Bushing 2 X X
6 AH146552 Arm 1 X X
7 AH212002 Pin 1 X X (SUB FOR AH156051)
8 24M7091 Washer 1 X X 26 X 44 X 4 mm
9 P46402 Snap Ring 1 X X

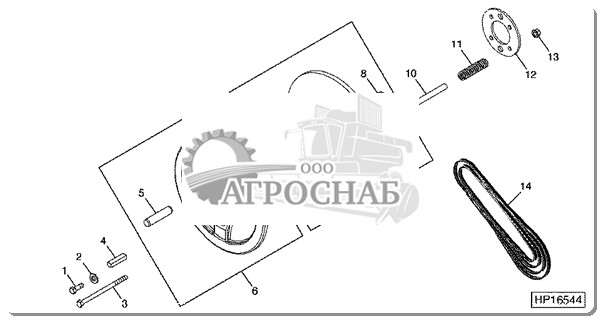

Cleaning Fan Drive - Standard Speed

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 H173750 Bolt 1 X X
2 24M7226 Washer 1 X X 13 X 35 X 5 mm
3 19M8404 Cap Screw 4 X X M8 X 130
4 49M7057 Shaft Key 1 X X 10 X 8 X 16 mm
5 R1964R Dowel Pin 1 X X
6 AH167534 Pulley 1 X X ORDER AXE14339
AXE14339 Half Sheave 1 X X
7 JD7759 Lubrication Fitting 1 X X
8 AH14080 Seal 2 X X
9 AH167535 Pulley 1 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
10 H173353 Spacer 4 X X
11 H93399 Compression Spring 4 X X
12 H163937 Washer 1 X X
13 H137328 Lock Nut 4 X X
14 H206048 V-Belt 1 X X LGTH = 2305 mm, WIDTH = 31.8 mm

Attachment, Cleaning Fan Drive, Slow Speed

key PART NO. PART NAME QTY SERIAL NO. REMARKS
1 BH84657 Complete Goods/Ship. Bundle 1

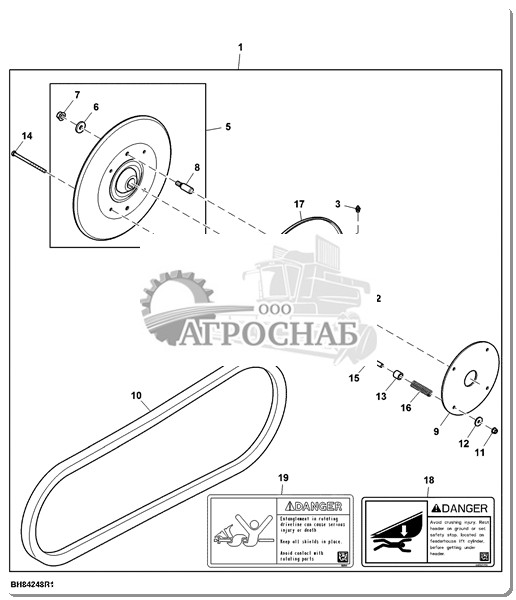

Cleaning Shoe Fan Drive, Slow Speed, Attachment

key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
1 BH84248 Fan Kit 1 X X Complete Goods / Bundles
2 AH14080 Seal 2 X X
3 JD7759 Lubrication Fitting 1 X X
4 H212068 Bushing 2 X X
5 AH171728 Fan Kit 1 - 705800
AH209576 Half Sheave 1 705801 -
6 24M7226 Washer 2 X X 13 X 35 X 5 mm
7 H137329 Lock Nut 2 X X
8 H209625 Stud 2 X X
9 AH157221 Washer 1 - 705800
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
H209971 Washer 1 705801 -
10 H211601 V-Belt 1 X X LGTH = 2555 mm, WIDTH = 31.8 mm
11 H137328 Lock Nut 4 X X
12 24M7024 Washer 4 X X 9 X 28 X 3 mm
13 28H2514 Bushing 4 X X 0.546" X 0.840" X 3/4"
14 19M8404 Cap Screw 4 X X M8 X 130
15 H173353 Spacer 4 X X 8.630 X 11.110 X 96.500 mm
16 H93399 Compression Spring 4 X X
17 AH209575 Half Sheave 1 X X INCLUDES (2) AH14080, JD7759, (2) H 212068, (2) HXE123792 AND (2) E82514
18 HXE123792 Label 2 X X
key PART NO. PART NAME QTY SERIAL NO. 9660 9760 REMARKS
19 E82514 Safety Sign 2 X X

???µN???N?N?N?N?N? ???° ???»?°????N?N? N?N?N??°????N?N?
